GEO12 - 12W Colour Temperature Switchable
GEO12 - 12W Colour Temperature Switchable
SKU:ICDLR1290-BLK
- Options:
Couldn't load pickup availability
Use:
• Rating - IC-F/IC-4
• Use - Interior
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44

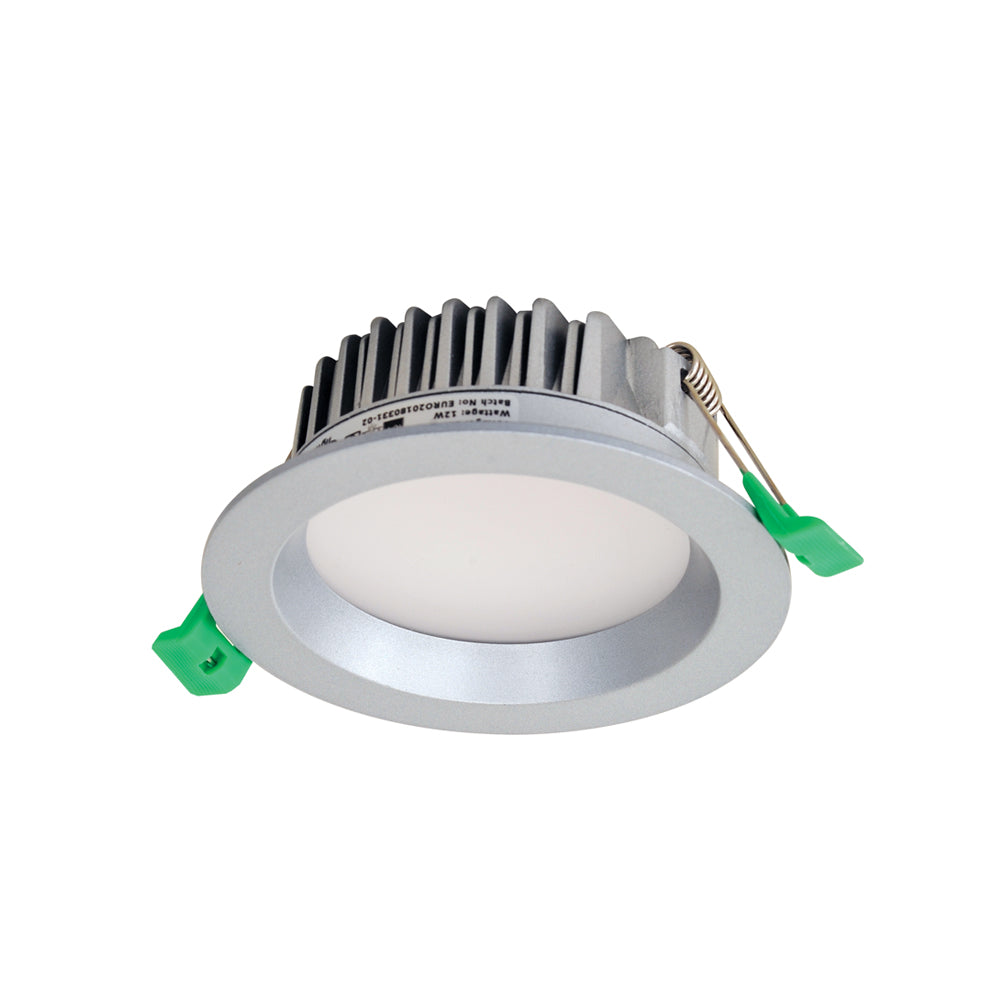

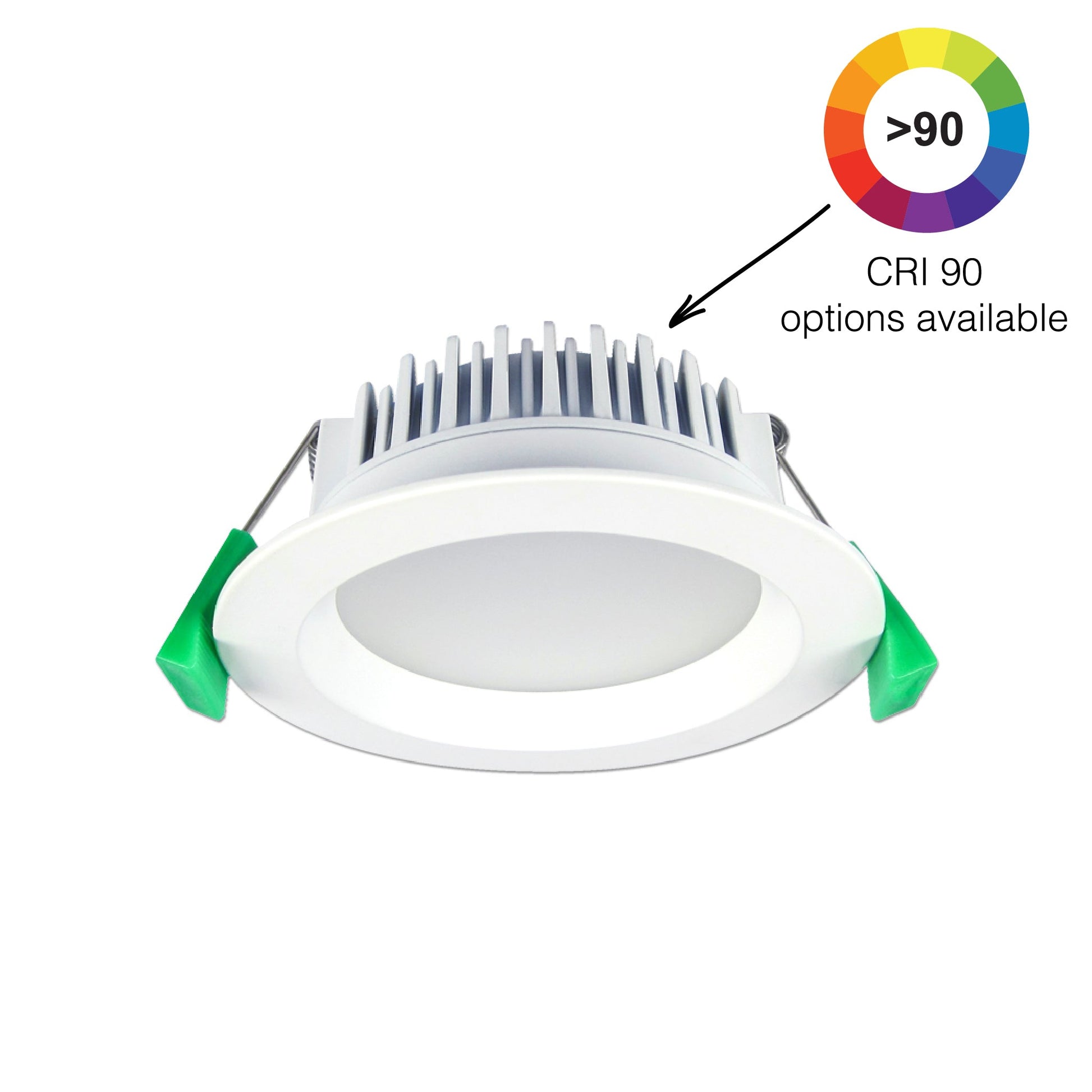

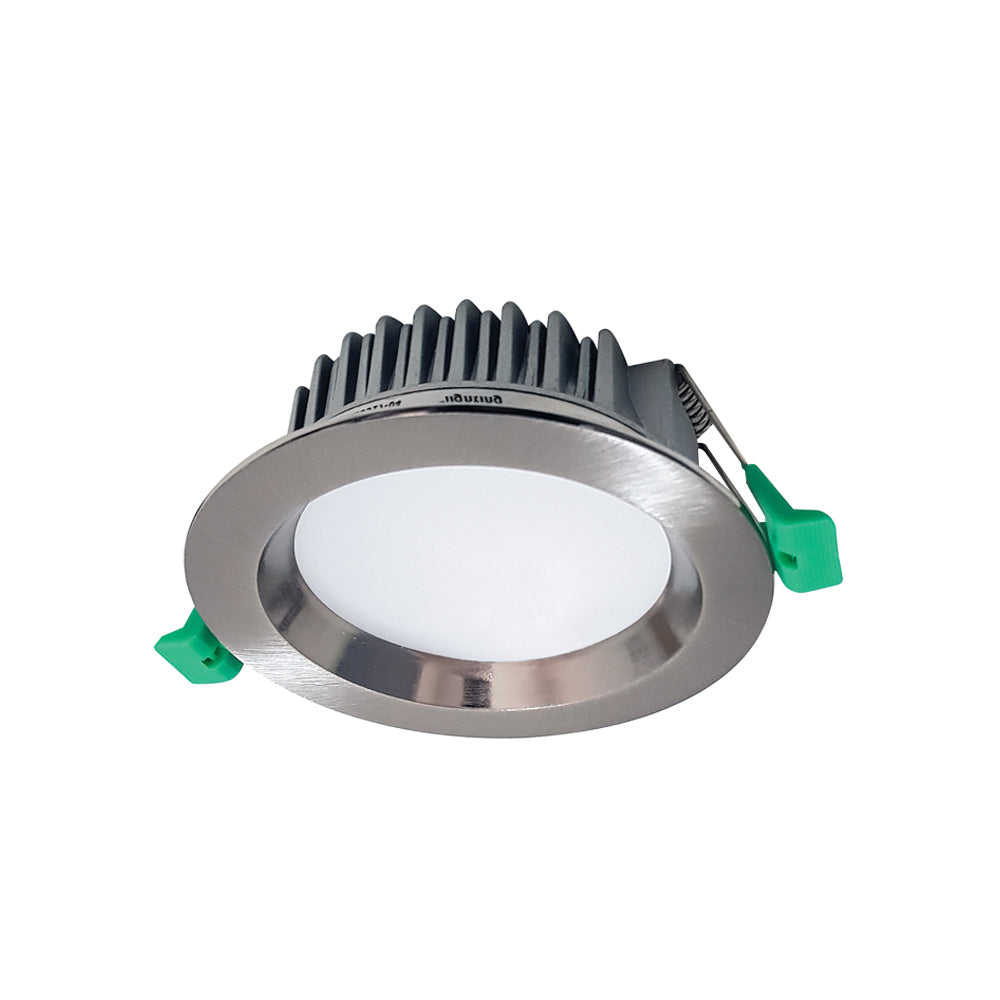

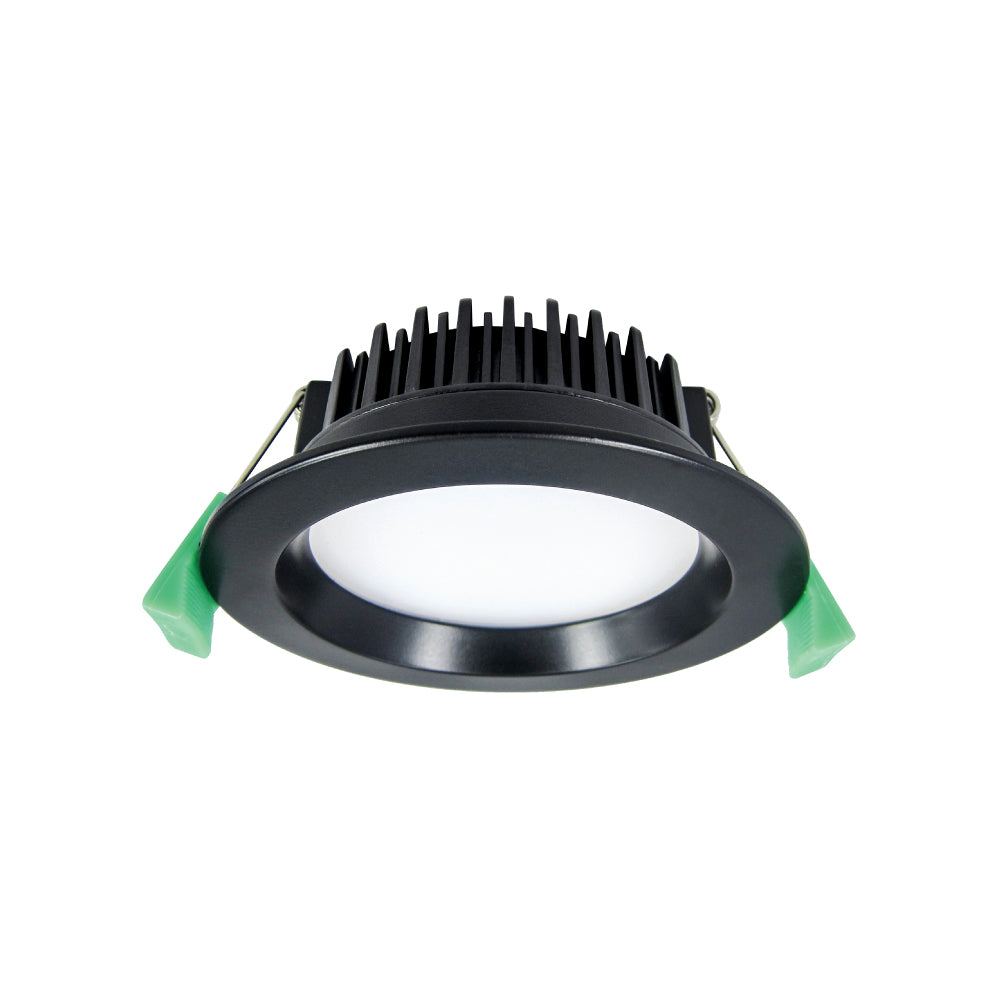

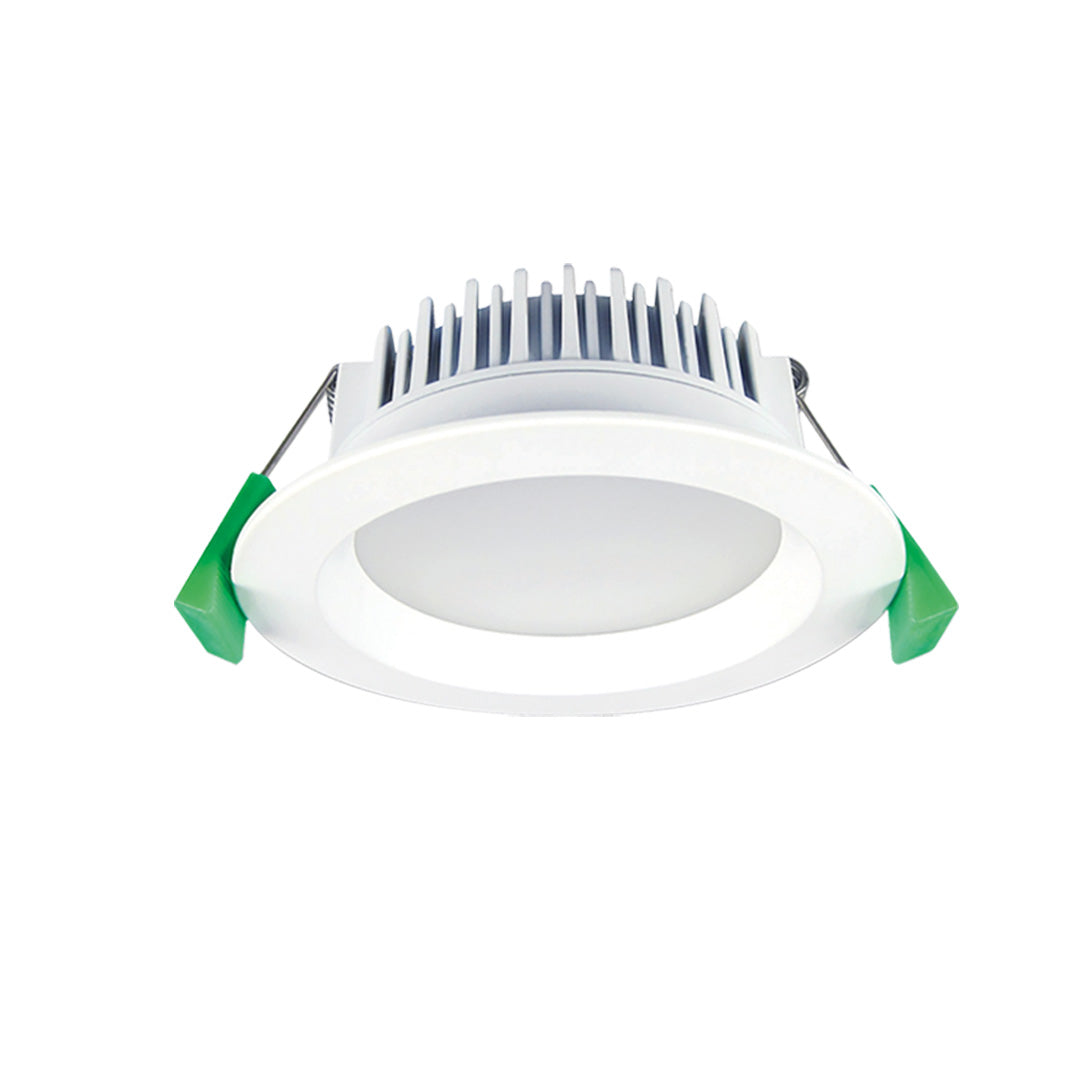

• Type - 12W Round Fixed CCT Downlight
Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - > 0.9
Light output:
• Lamp Type – Integrated LED
• Wattage - 12W (including the driver)
• Lumens (CRI - > 80)
| Colour Temperature | Flux (Lumens) |
|---|---|
| 2700K | 1158lm (+/-5%) |
| 3000K | 1194lm (+/-5%) |
| 4000K | 1274lm (+/-5%) |
| 5000K | 1242lm (+/-5%) |
| 6500K | 1167lm (+/-5%) |
• Colour Temperature - 2700K | 3000K | 4000K | 5000K | 6500K
• CRI - > 80
• Beam Angle - 90°
• Dimmable - Yes
• Max ambient operating temperature: +45°C
Physical size:
• Dimensions (mm) - 108Ø x 42H
• Cut-out (mm) - From 82-98Ø
Product info:
•Choose between (2.7K) Warm Yellow, Warm White (3K), Neutral White (4K) Daylight White(5K)& Bluish Daylight (6.5K) to suit application use.
• Change the colour temperature using the switch on the driver.
• Warranty - 1 year
*T&C Apply
This model replaces our ICDLR12W3K & ICDLR12W3K
*Does not offer protection for highly corrosive environments, example: Zone D as outlined in the building code.
