GEO15R - 160mm Front Face Retrofit Downlight

Use:
• Application - Residential & Commercial use
• Use - Interior
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - > 0.9

Light output:
• Lamp Type - Integrated LED
• Wattage - 15.3W (including the driver)
• Lumens (CRI - > 90) - 1020lm (3000K) | 1105lm (4000K) | 1060lm (6500K)
• Colour Temperature - 3000K | 4000K | 6500K
• CRI - > 90
• Beam Angle - 90°
• UGR Rating - <19
• Dimmable - Yes
• Max ambient operating temperature: +45°C

Physical size:
• Dimensions - 160Ømm x 47mmHeight
• Cut-out - From 120-125Ømm
• Rating - IC-F/IC-4
• *HCB: 0mm | *SCB: 0mm | Height of fitting: 47mm

Product info:
• Type - 15W Retrofit CCT Downlight
• Choose between Warm White (3K), Cool White (4K) & Daylight (6.5K) to suit application use.
• Change the colour temperature using the switch on the driver.
• Material - Aluminium

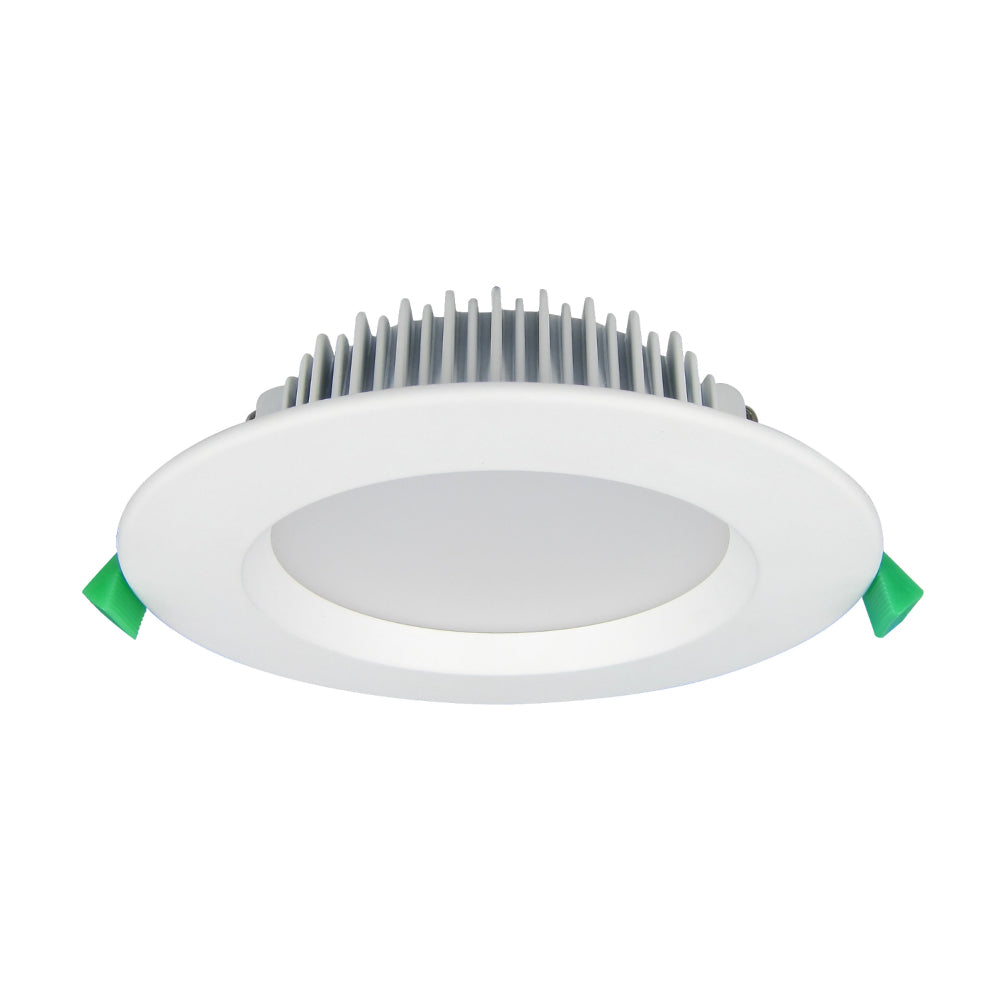

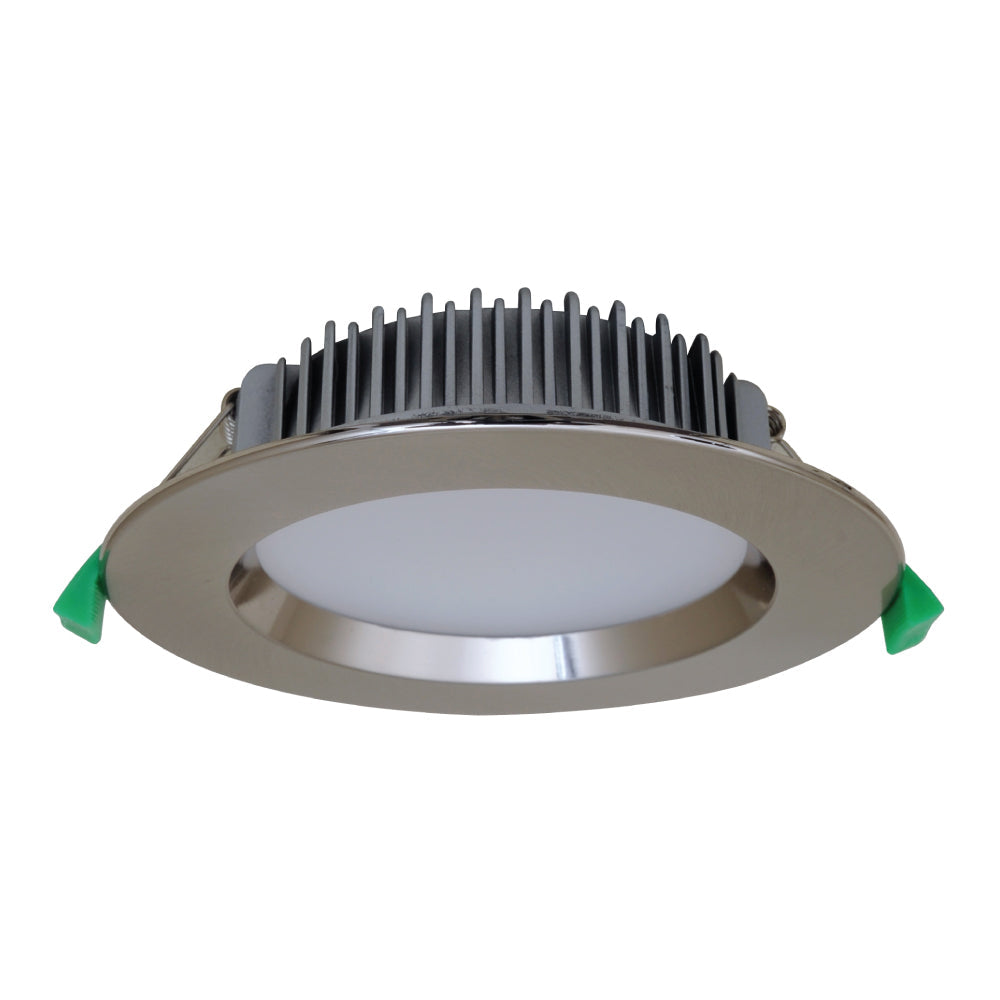

• Colour - White or Brushed Chrome
• Shape - Round
• Mounting - Recessed
• Warranty - 1 year

*T&C Apply

*HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.

This model replaces our ICDLR16015W3K-WH, ICDLR16015W4K-WH & ICDLR16015W3K-BCH

Note: Brushed chrome models not suitable for exterior use and bathrooms

*Does not offer protection for highly corrosive environments, example: Zone D as outlined in the building code.
