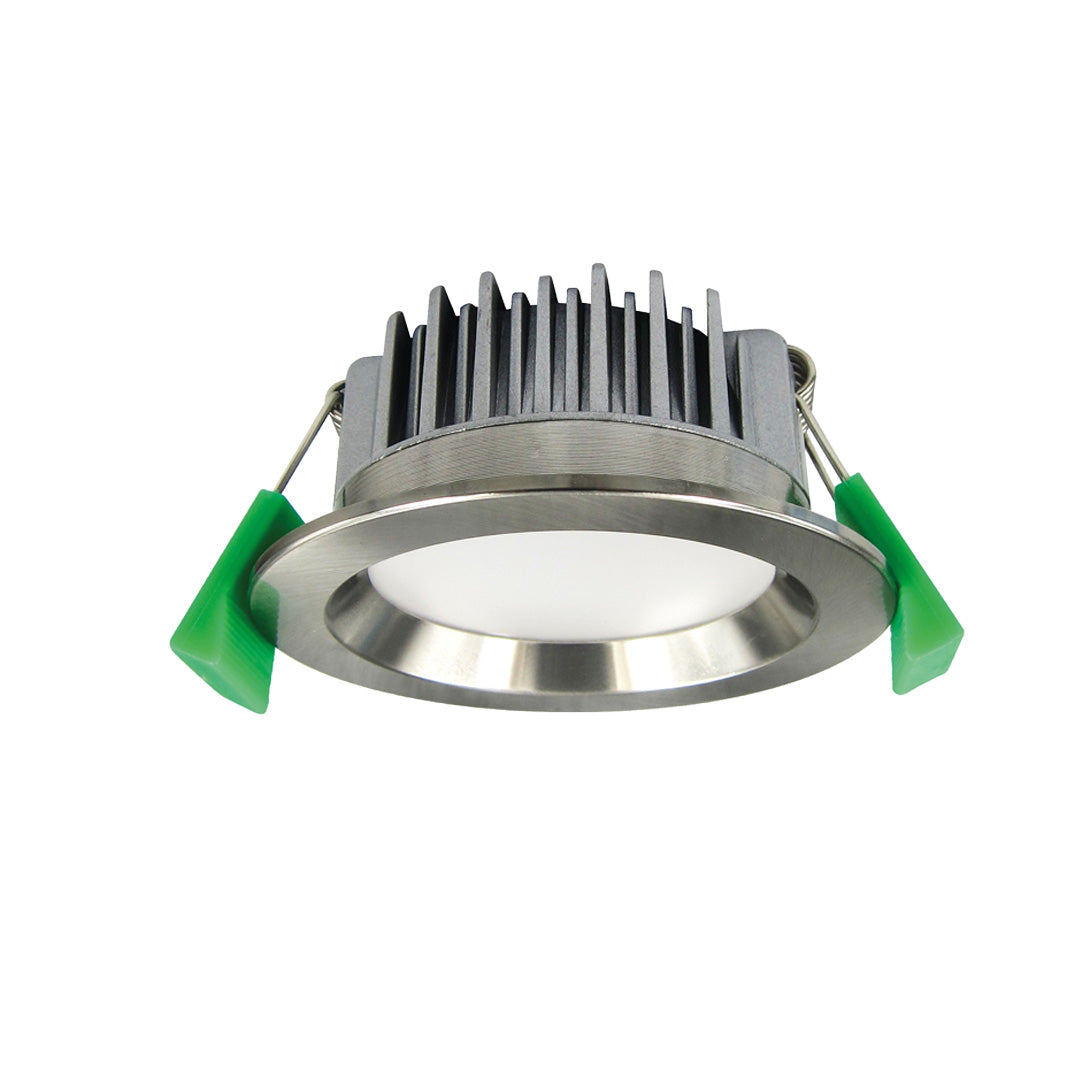

GEO12 - 12W CRI80 CCT LED Downlight

General:
• Finish:
   - Material - Aluminium
    - Diffuser - Opaque PMMA
• Dimensions (mm):
   - Front face: Ø108 x 42H
   - Cut-out (mm) - From Ø92-99
• Weight - 0.2kg
• IP Rating - IP44
• Mounting Options - Recessed

Electrical:
• Ambient operating temperature: -20° ~ +45°
• Voltage - 230V
• Wattage - 12W
• Class III
• Luminous Efficacy - 100 lm/W (+/- 5%)
• Driver - Replaceable
• Rating - IC-F/IC-4
• Dimmable - Yes

Phototmetrics:
• Correlated Colour Temperature - 2700K | 3000K | 4000K | 5000K | 6500K
• Optics - Opal
• Lumen Maintenance (L70) - 50,000 hours
• Light Source – Integrated SMD LED

• CRI - > 80
• Beam Angle - 90°

Product info:
• Type - 12W Round Fixed CCT Downlight
• CCT Selectable Choose between (2.7K, 3K, 4K, 5K or 6.5K)
• Change the colour temperature using the switch on the driver.
• Warranty - 1 year

*T&C Apply

This model replaces our ICDLR12W3K & ICDLR12W4K

Note: Brushed chrome models are not suitable for exterior use or bathrooms.

*Does not offer protection for highly corrosive environments, e.g. Zone D as outlined in the building code.

*Refer to DDT280 for a replaceable driver to extend the longevity of the downlight.
