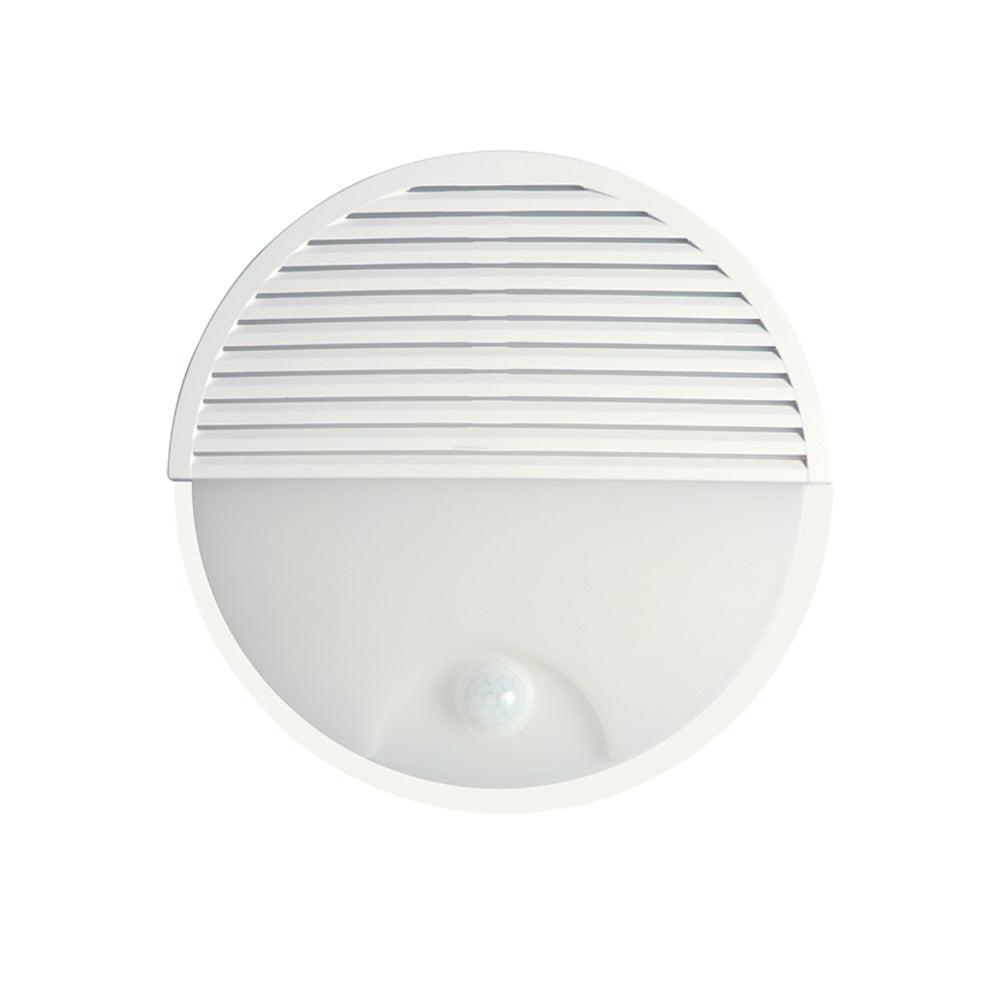

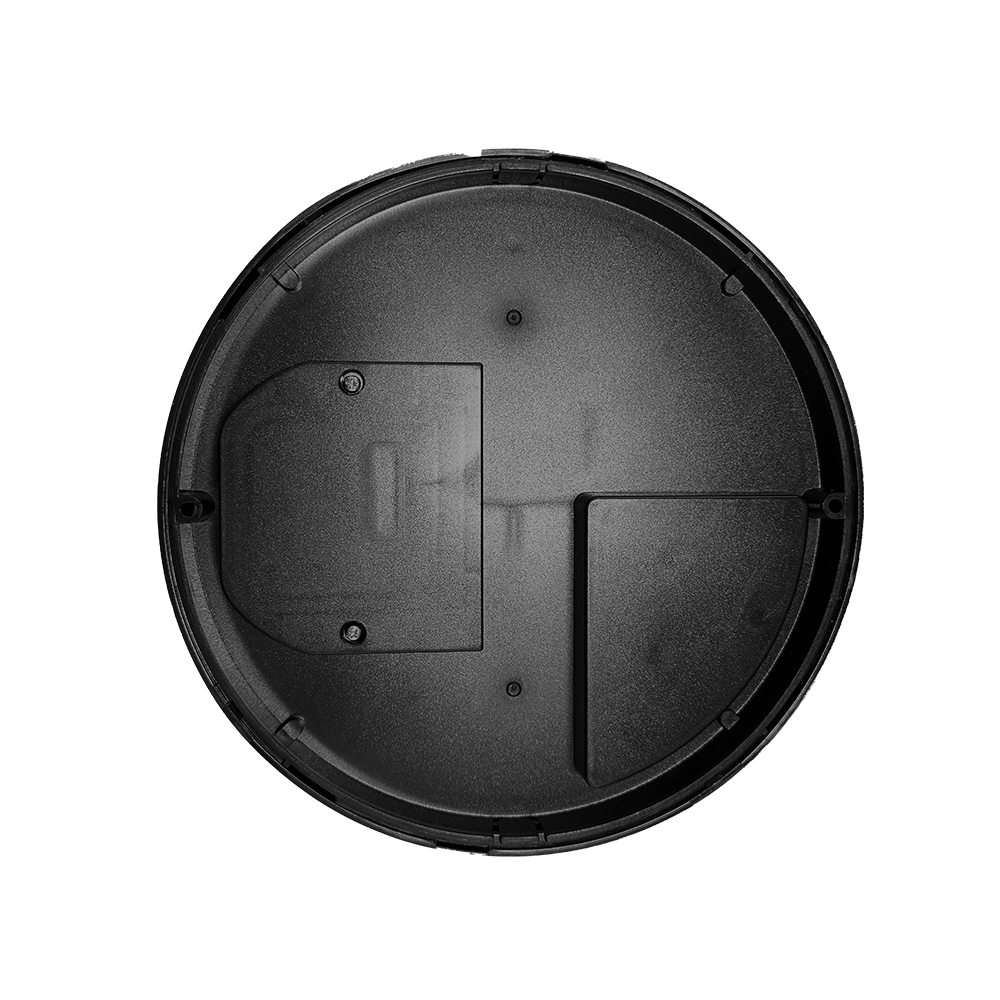

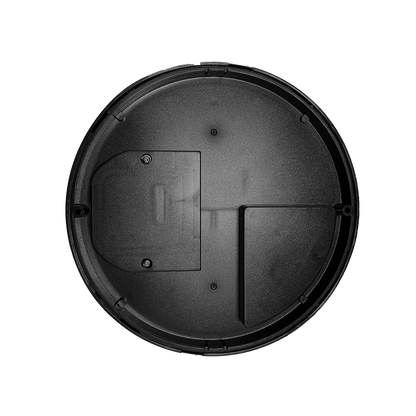

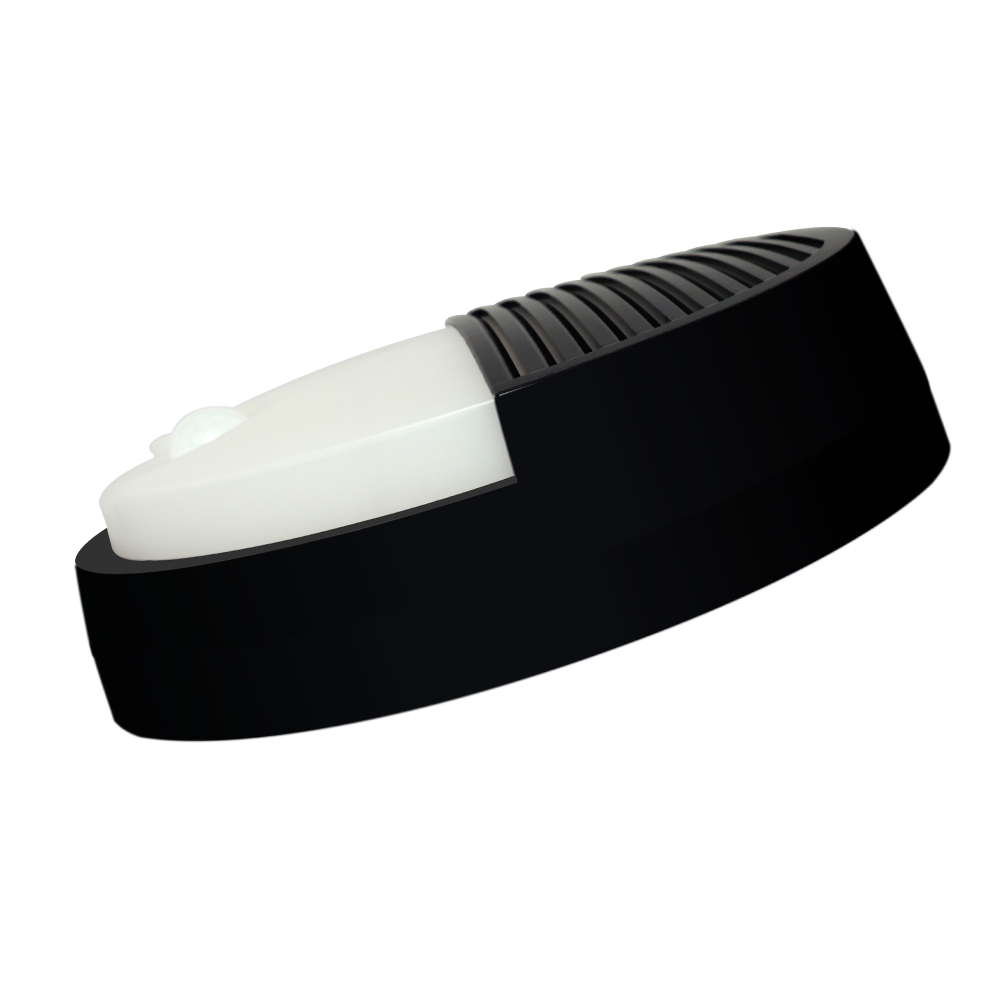

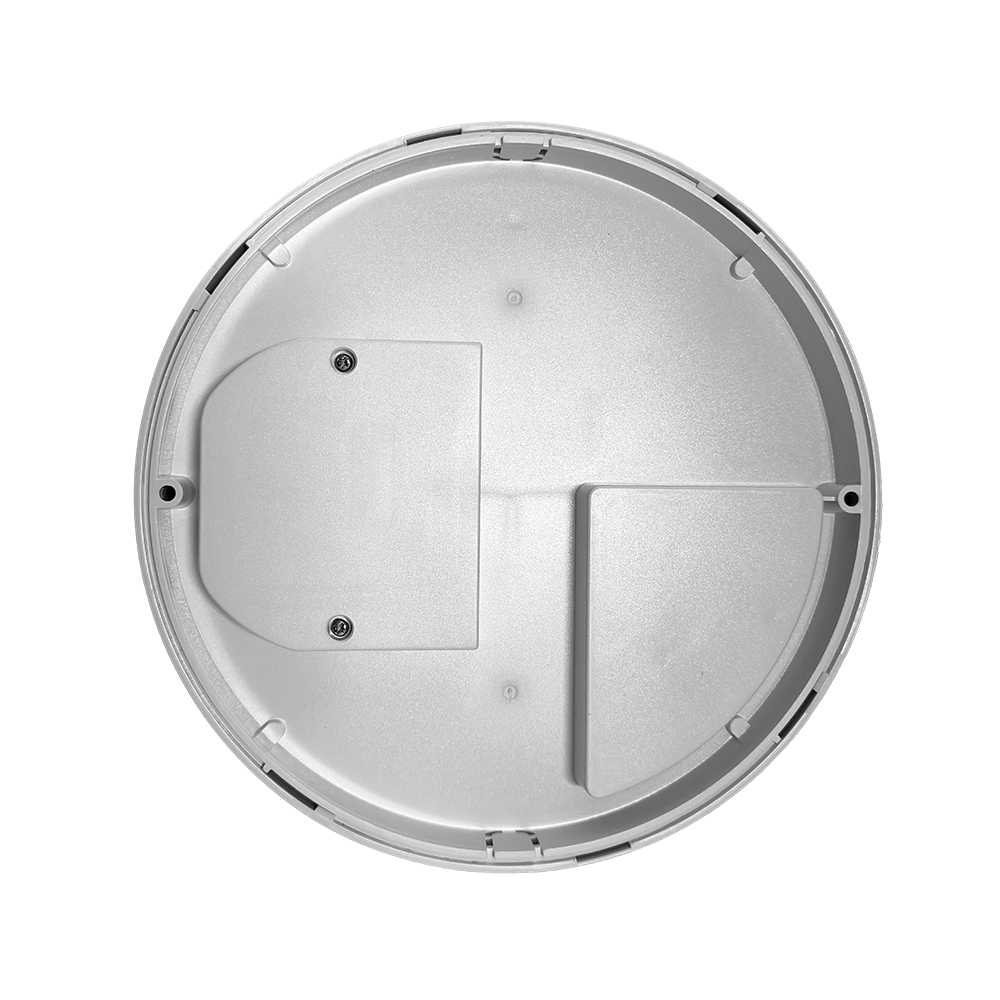

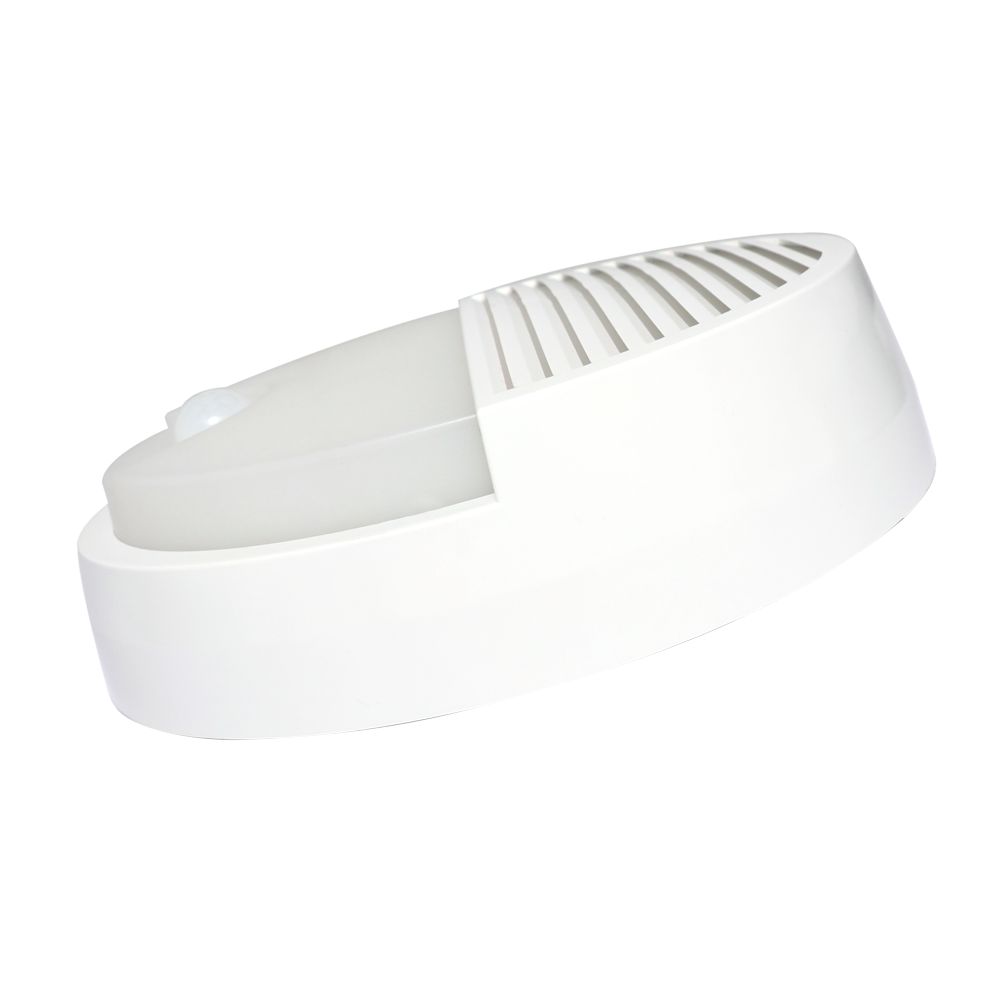

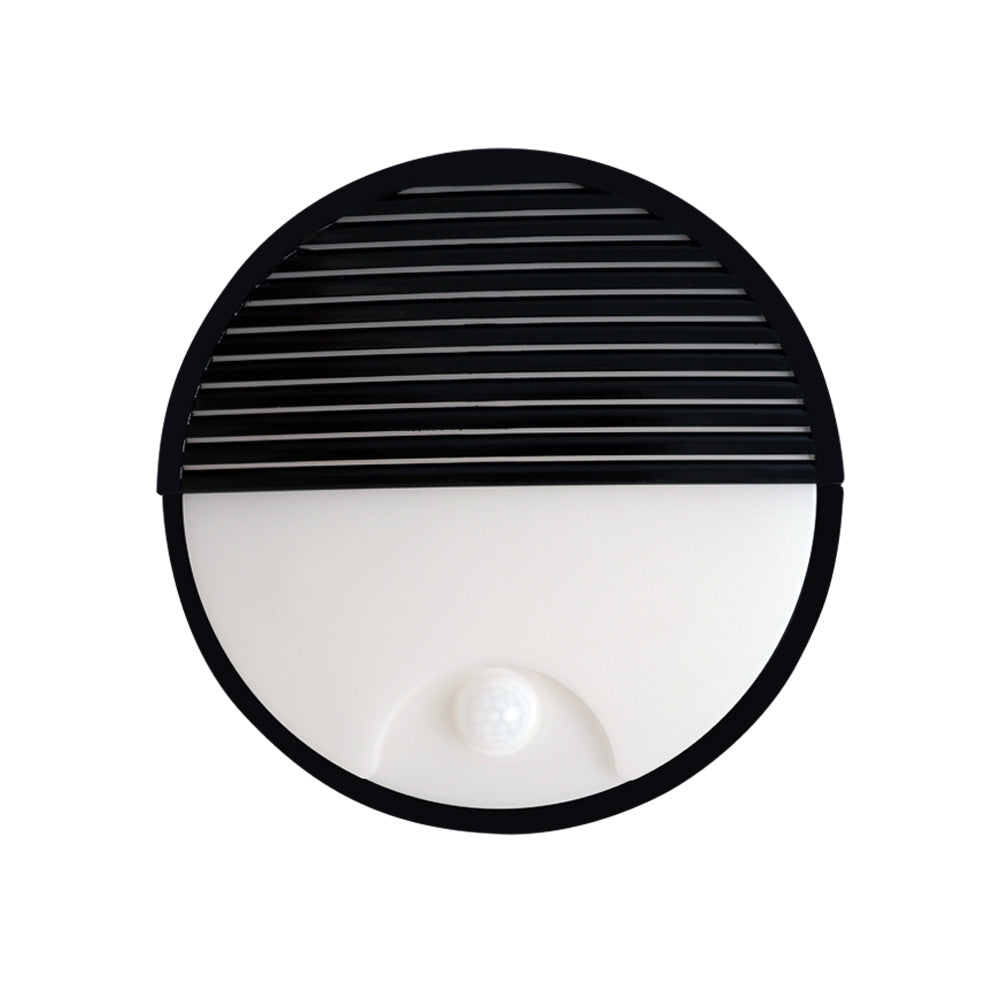

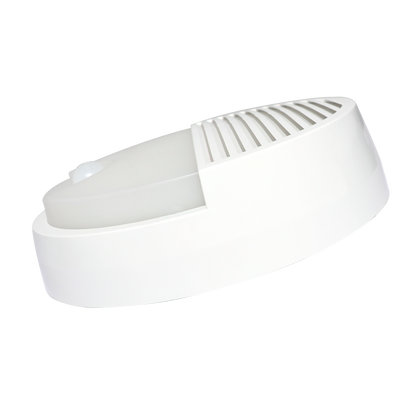

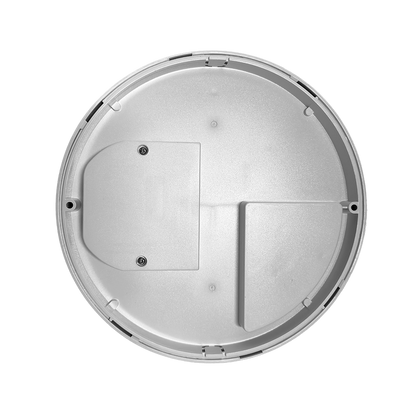

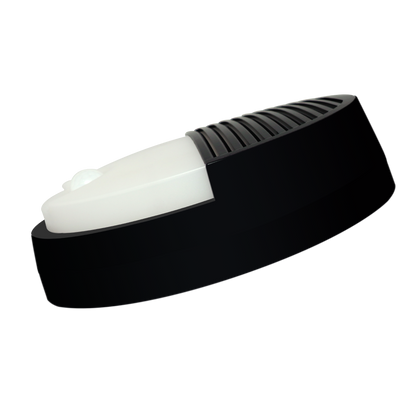

Ovate Round Grill Sensor CCT Bulkhead

General

• Application - Residential or Commercial

• Use - Exterior
• Lumen Maintenance (L70) - 30,000 Ta25°

Electrical
• Voltage - 230V
• Frequency - 50Hz
• Wattage - 12W
• Ambient Operating Temperature - (-20° ~ +50°)
• Class II - Double Insulated , no earth required
• Lumen Efficacy - >95lm/W (+/- 5%)
• Dimmable - No

Photometrics

• Colour Temperature - CCT Selectable (3000K / 4000K / 5000K)
• Lumens ( +/- 5%)

• CRI - >80
• Optics - Frosted Opal
• Beam Angle - 110°

Sensor
• Technology Type - PIR
• Detection Angle - 120°
• Detection Distance- 6m Max (+/- 1m) condition dependant
• Sensor duration - 5secs- 8 mins
• Function - Linkable. Up to 6 units can be wired together to operate as a group

Physical Size
• Dimensions(mm) - ⌀215mm x 61D
• Material - Polycarbonate
• Weight - 1.3kg

Product Info
• Mounting Options - Surface (Wall)
• IP Rating - IP65
• IK Rating - IK08
• Warranty - 1 year

*T&C Apply
